Metal Sheet Floor Decking Roofing Roll Forming Machines with Embossing Rollers Design
Machine Component List:
| Name | NO. | Unit |
| 1.De-coiler | 1 | set |
| 2.Forming machine | 1 | set |
| 3.Cutting device | 1 | set |
| 4.PLC control box | 1 | set |
| 5.Hydraulic pump station | 1 | set |
| 6.Production support table | 1 | set |
Processes flow:
Decoiler—Roll forming machine—PLC system—Hydraulic system-Blade—Receiving table
Machine Detail Information
Manual Un-coiler
Max Capacity: 5000kgs
Inner diameter of coil: 400-600mm
Manual with brake
Auto Main Forming System
Width: According to Drawings
Height: According to Drawings
Thickness of sheet: According to Drawings
Material: GI sheet coil or Colored sheet coil
Motor Power: 18.5 kw forming system
Roller material: C45 steel, chrome coated
Diameter of shaft: 110 mm
Transmission: by chain and gear Measuring accuracy: +/- 0.5 mm/M
Base Frame: 400 H steel welded
The machine base is assembled and welded by high quality steel
Total Length of Machine: 11.8 m
Hydraulic Cutting Device
Cutting way: pause to cut.
Blade Material: Cr12
Hydraulic power: 4 kw hydraulic system.
Hydraulic Station Structure: 300mm steel welded. Four guide columns.
Electrical System
Control system: HMI & PLC control panel.
Power: 440V 50Hz (as per local requirement)
Run-out Table
Frame: 8# steel groove welded
Roller type.
Quantity: 1 pc
| Working conditions |
| 1.working size | 25m x 2m x 4m |
| 2.Power supply | 8.5kw |
| 3.Frequency | 50-60HZ |
| 4.Wires/cables | 4-6mm²(length according to workshop) |
| 5. Labor cost | 2 workers |
| 6. Tools | Spanners and screwdriver |
| 7.Lift device | 3-5t forklift or crane |
Service
Provide Pre-sales Consultant & On-purchase service 24 hr × 6 days per week
1. Reply within 24 hours
2. Provide relevant product information
3. Answer questions if request
4. Give technical suggestion
Provide After-sales service 24hr × 7days per week
1. Test the machine before shipment
2. Provide technical guidance relate to use the machine
3. Supply one-year warranty period for the machine
4. Provide the spare parts at cost price after warranty period
5. Collect the feedback for the machine working
Cangzhou BEST Machinery Co., Ltd. is a professional manufacturer and exporter that is concerned with the design, development and production of all kinds of roll forming machine. We are located in Cangzhou, China, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.

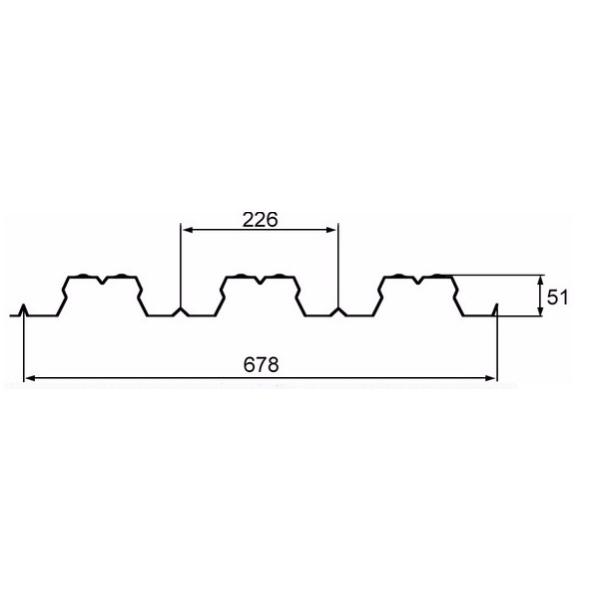

Profile Drawing
