8.5kw Rib Lath Roof Sheet Rolling Machine For Plastering Background

  • 1
  • 2

Brand Name : CBEST

Model Number : YX988

Certification : CE/BV/SGS

Place of Origin : HEBEI CHINA

MOQ : 1set

Price : USD 12000 / SET

Supply Ability : 15sets/month

Delivery Time : 35days

Packaging Details : naked

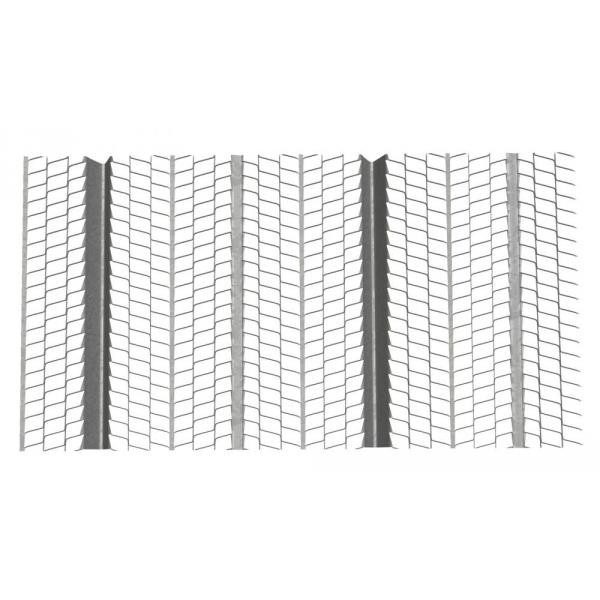

Name : RIB LATH for plastering background for suspended ceiling Roll Forming Machine

Machine color : as request

Payment type : T/T LC

Speed : 8-12m/min

Roller material : 45#steel

Shaft material : 45#steel

Power : 8.5kw

Contact Now

8.5kw Rib Lath Roof Sheet Rolling Machine for Plastering Background
This RIB LATH roll forming machine is specifically designed for producing plastering background materials used in suspended ceiling systems. The machine transforms steel coils into precise roof and wall panels according to client specifications.
Applications
The finished steel roof and wall sheets are versatile building materials used in various construction projects including:
  • Gymnasiums and sports facilities
  • Airports and transportation hubs
  • Theaters and entertainment venues
  • Industrial factories and warehouses
  • Garages and automotive facilities
  • Exhibition centers and convention halls
8.5kw Rib Lath Roof Sheet Rolling Machine For Plastering Background
Technical Specifications
Component Model/Name Quantity Technical Description
Decoiler System Arm type automatic decoiler (With ultrasonic control) 1 set Arm-type design with hydraulic expansion, electrical motor active sheet release, includes coil cart and pressing arm
Main Forming System Pre-shearing device 1 set Roller material: No.45 steel with hard chrome plating; Roller shaft: No.45 steel; Cycloidal pin gear speed reducer motor driving
Feeding System Feeding guide device 1 set Precision guidance system for consistent material feeding
Surface Protection Film covering device 1 set Protective film application for finished product surface
Forming Process Roll forming system 1 set Multi-station precision forming system
Quality Control Pressing system 2 sets Ensures dimensional accuracy and product quality
Cutting System Post-cutting device 1 set Precision cutting to required lengths
Safety Features Complete safety cover 1 set Full safety enclosure for operator protection
Output Handling Support table 2 sets Sturdy support system for finished plates
Power System Hydraulic system 1 set Separated hydraulic station for main machine and decoiler
Control System Electric control system 1 set PLC control with encoder automatic length cutting, touch screen operation, AC frequency speed adjustment
Detailed Component Information
Decoiler System
5T manual decoiler featuring mandrel and basement components. The mandrel expands and contracts mechanically with 4 segments ranging from 460-520mm. Center mandrel height: 0.65m with feeding speed synchronized to roll forming machine.
8.5kw Rib Lath Roof Sheet Rolling Machine For Plastering Background
Roll Forming Machine
  • Rollers: Designed using Auto-cad software, manufactured from 45# high-grade steel with CNC machining and hard chrome coating
  • Shaft: 45# high-grade steel with chrome coating HRC55-60°
  • Shaft diameter: 70mm
  • Supporting frame: Steel wallboard with guide column bearing basement
  • Number of roller stations: 18 groups
  • Frame panel thickness: 14mm
  • Bottom frame: 36# H-section steel construction
Cutting System
  • PLC-controlled cutting operation
  • Automatic machine stop/start sequence
  • Hydraulic power supply
  • Welded steel frame construction
  • Non-contact photoelectric stroke switch
  • Post-forming cutting to required lengths
  • Automatic length measurement system
Hydraulic System
  • Gear wheel oil pump control
  • Includes hydraulic tank, oil pump, pipes, and electromagnetism valves
  • Top brand components for stability and longevity
  • Energy-efficient operation with power-off during non-cutting periods
  • Leak-proof design
Electric Control System
  • Automatic length measurement with easy calibration
  • Automatic quantity measurement and counting
  • PLC control for length and quantity management
  • Automatic stop when required quantity is achieved
  • Button-type switches with LED display
  • Motor overload and system protection functions
  • Total length and quantity production tracking
8.5kw Rib Lath Roof Sheet Rolling Machine For Plastering Background
8.5kw Rib Lath Roof Sheet Rolling Machine For Plastering Background
Production Process Flow
8.5kw Rib Lath Roof Sheet Rolling Machine For Plastering Background
Manufacturing Facility
8.5kw Rib Lath Roof Sheet Rolling Machine For Plastering Background
Frequently Asked Questions
How to request an accurate quotation for the framework making machine?
We provide accurate quotations based on your drawing profile. Please share your specific requirements and drawings. Machine pricing varies based on frame design, PLC brand, motor specifications, and additional features.
What are your payment terms?
30% T/T deposit with balance payment before shipping after inspection. We also accept L/C, O/A, and D/P payment methods.
What is your after-sale service policy?
24-month warranty period. If repair parts cannot be fixed, we provide replacements free of charge (customer covers express costs). We offer technical support throughout the entire lifespan of the T Bar Roll Forming Machine.
How to visit your company?
Option A: Fly to Beijing airport, take high-speed train from Beijing Nan to Cangzhou Xi (1 hour), we provide pickup service. Option B: Fly to Shanghai Airport, take high-speed train from Shanghai Hongqiao to Cangzhou Xi (4.5 hours), we provide pickup service.
